Product Details

Cam Lock Couplings

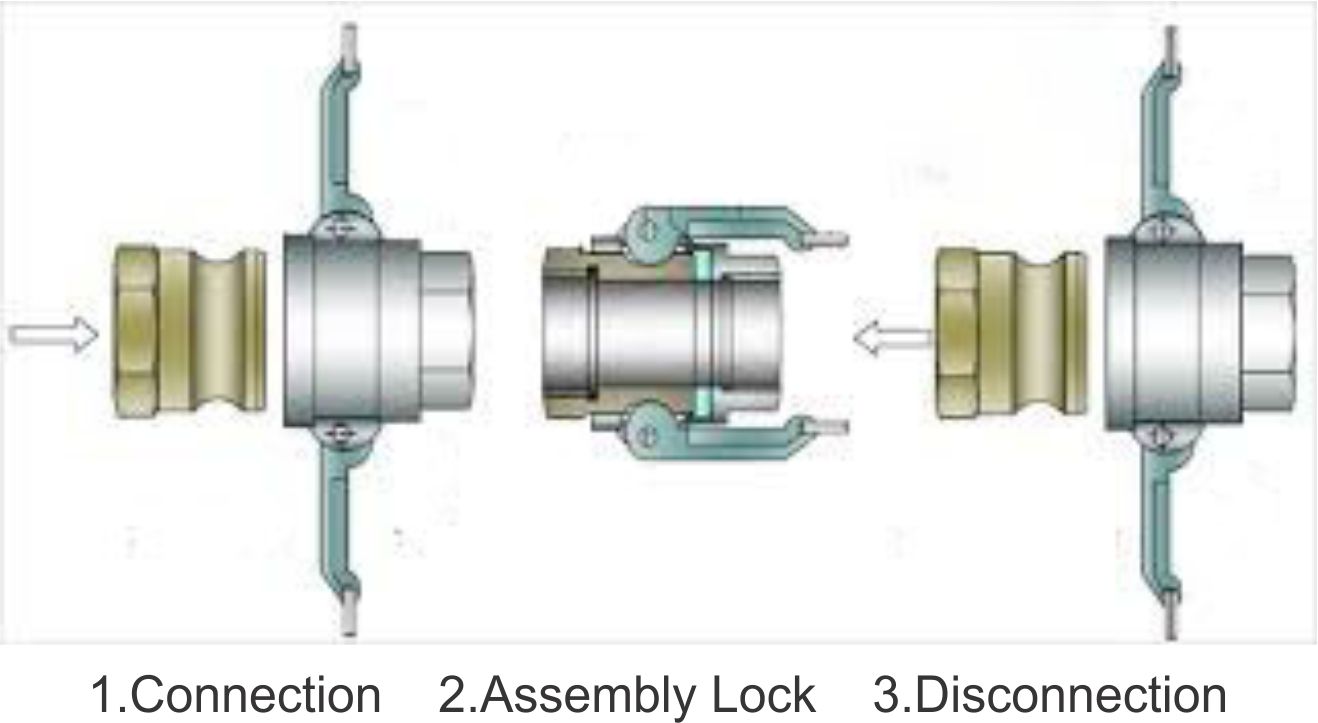

Poypropylene Quick Connect/Disconnect Couplings provide for quick connecting and disconnecting by means of the camming action. This camming action allows pipe and hose connections to be made without the need of hand tools or difficult threaded connections. Cam and groove couplings are made up of two parts, male (adapter/plug) and female (Coupler/Socket) that work together. The male adapter is simply inserted into the female coupler until contact is made with the gasket. Both cam arms on the coupler are then pressed down/closed simultaneously to produce a uniform gasket compression between the seal surfaces. this seal is created because the cam arms of the female coupler fit snugly against the groove of the male adapter. A positive seal requires that the surfaces on the gasket seat, the adapter face, and the gasket are smooth and uncontaminated. Also cam arms must be in the full closed position for proper locking of the coupling. To disconnect both the arms must be lifted / opened simultaneously to release the seal and release the connection.

The Cam-lock Couplings meet the dimensional requirements of US specification MIL-C-27487.

Polypropylene Couplings are pressure Tested to  twice working Pressure.

• Polypropylene Couplings Contain 25 - 30 % fiberglass reinforcements.
• Smooth unrestricted bore permits full flow of liquids.
• Alternative hose stem and threaded end connections give neat compact installations with the minimum number of joints.
• Polypropylene allows a wide variety of fluids to be handled without corrosion.
• Precision moulding insures a uniform and accurate fit.
• Economical and superior in performance.
